As more people embrace RV camping, the demand for reliable and safe power sources has increased. A 50 amp RV plug is often the preferred choice for RV owners because it provides the necessary power to run multiple appliances and systems inside the RV. If you’re considering installing a 50 amp RV plug at home, understanding the electrical requirements and installation process is crucial to ensure safety and efficiency.
In this guide, we’ll take you through the steps involved in installing a 50 amp RV plug, from the necessary tools and materials to proper wiring techniques and safety precautions.
Why Install a 50 Amp RV Plug at Home?
Before diving into the installation process, it’s important to understand why you would want a 50 amp RV plug at your home in the first place. A 50 amp RV plug provides a higher level of power, typically 240 volts, which is needed to run larger appliances in your RV, such as air conditioners, microwaves, and water heaters, simultaneously. If you plan on using your RV at home for long-term stays or want to ensure that you have enough power when connected to shore power, a 50 amp RV plug is the best solution.
Materials and Tools Needed for the Job
Installing a 50 amp RV plug requires specific materials and tools. Below is a list of the essential items you’ll need:
- 50 Amp RV Outlet (NEMA 14-50R)
- Double-pole 50 Amp Circuit Breaker
- 10/3 Wire (with ground)
- Electrical Box (Outdoor-rated)
- Conduit (PVC or metal, depending on local codes)
- Wire Strippers
- Screwdrivers (Flathead and Phillips)
- Voltage Tester
- Tape Measure
- Drill and Drill Bits
- Cable Clamps
- Level
- Electrical Tape
- Safety Gear (Gloves, Goggles)
Make sure you have all these materials ready before starting the installation process.
Step-by-Step Guide to Installing a 50 Amp RV Plug
Turn Off the Power Supply
The first and most important step when working with electrical systems is ensuring your safety. Before you begin any installation, turn off the main power supply to the area where you’ll be working. Go to your home’s electrical panel and shut off the breaker that powers the area where the 50 amp plug will be installed. You’ll also want to use a voltage tester to double-check that there’s no power flowing to the area before starting work.
Choose the Right Location for the Outlet
The next step is to select a suitable location for the 50 amp RV plug. Ideally, this should be near where your RV will be parked, but also in a location that complies with local building codes. Keep the following in mind when choosing the location:
- Accessibility: The plug should be easily accessible for you to connect your RV cord.
- Ventilation: Make sure there’s enough space around the plug to allow for proper ventilation, as electrical outlets can get warm when in use.
- Outdoor Use: If installing the plug outside, ensure it’s weatherproof and complies with local outdoor electrical codes.
Using a level, mark the location where you want to install the electrical box. Ensure it’s high enough off the ground to avoid potential water damage.
Install the Electrical Box
Once you’ve chosen the location, it’s time to install the electrical box. This box will house the 50 amp RV outlet. Use a drill to mount the box securely to the wall, fence, or other structure where you plan to install the outlet. If you’re mounting it outdoors, make sure the box is rated for outdoor use to prevent moisture damage.
Install the 50 Amp RV Outlet

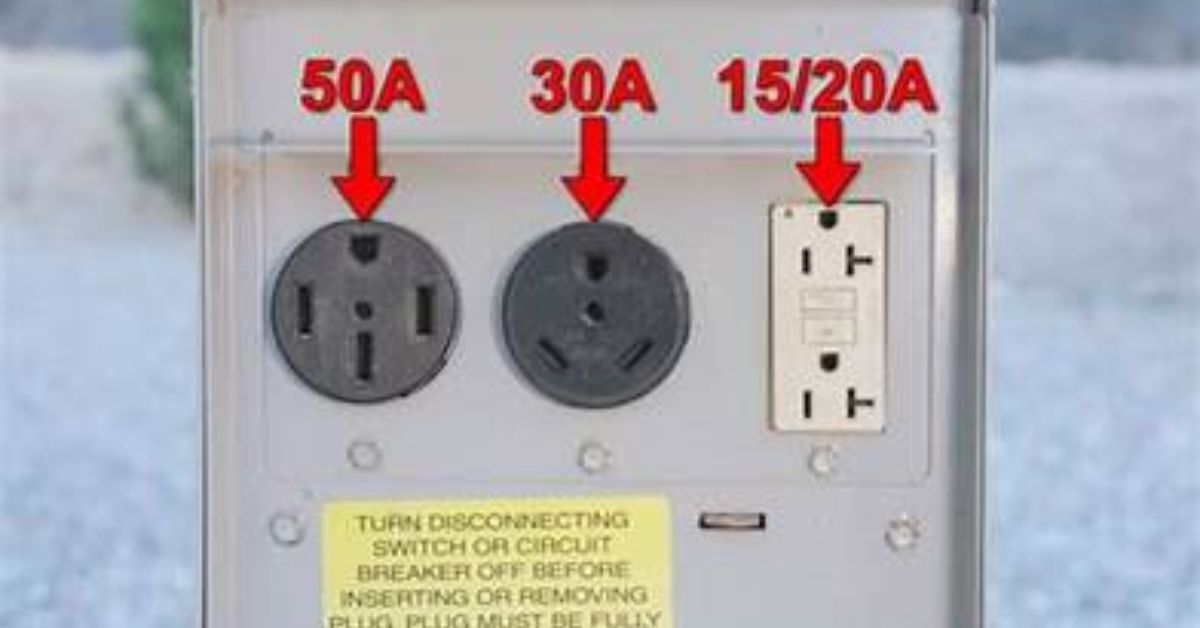

After securing the electrical box, it’s time to install the 50 amp RV outlet. The RV outlet itself is typically a NEMA 14-50R model, which has four prongs – two hot (240V), one neutral (120V), and one ground. Follow the manufacturer’s instructions to wire the outlet.
Here’s a quick overview of how to wire the outlet:
- Black Wire (Hot): Connect the black wire to one of the hot terminals (usually the smaller prong) on the outlet.
- Red Wire (Hot): Connect the red wire to the other hot terminal (larger prong).
- White Wire (Neutral): Connect the white wire to the neutral terminal (typically the U-shaped prong).
- Green or Bare Wire (Ground): Connect the green or bare wire to the ground terminal (the round prong).
Once the wires are attached to the outlet, screw the outlet into the electrical box, making sure it’s secure. Then, cover the outlet with the appropriate weatherproof cover if it’s outdoors.
Run the Wiring from the Outlet to the Breaker Panel
The next step is to run the appropriate wiring from the 50 amp outlet to your electrical panel. You’ll need 10/3 wire with a ground wire, as this type of wiring can handle the 50 amp load. It’s best to use conduit to protect the wiring, particularly if it’s running outdoors. Cut the wire to the appropriate length and strip the ends of the wires to prepare for connections.
Start by running the wire from the outlet to the breaker panel. Use cable clamps to secure the wire along the way, ensuring it is neatly and safely installed. Drill holes as necessary to pass the wire through walls or structures, and ensure that the wire is free of any sharp bends.
Install the 50 Amp Circuit Breaker
Now it’s time to install the 50 amp circuit breaker in your electrical panel. This breaker will control the power supply to the 50 amp RV plug. Here’s how to do it:
- Attach the black wire (hot) to one of the breaker’s terminals.
- Attach the red wire (hot) to the other terminal of the breaker.
- Connect the white wire (neutral) to the neutral bus bar.
- Connect the ground wire to the ground bus bar.
Once the wires are securely connected, clip the circuit breaker into place and ensure it’s firmly seated in the panel.
Test the Connection
With everything wired up, it’s time to test the connection. Before turning on the power, double-check that all wires are properly connected and that there are no exposed wires. Once everything is securely in place, turn the main breaker back on and switch on the 50 amp circuit breaker. Use a voltage tester to verify that the outlet is receiving 240 volts. If everything checks out, your 50 amp RV plug should be ready to use.
Check for Any Issues
After testing, check for any signs of issues, such as flickering lights, overheating outlets, or tripped breakers. If you notice any of these problems, turn off the power immediately and check your wiring connections again. If you’re unsure about any part of the installation, it’s always a good idea to call a licensed electrician to inspect your work.
Safety Precautions to Keep in Mind
Working with electricity can be dangerous if you don’t take the proper precautions. Here are some essential safety tips:
- Work With the Power Off: Always ensure the power is turned off at the circuit breaker before starting any work.
- Wear Safety Gear: Wear insulated gloves and goggles when working with electrical components.
- Use the Right Tools: Make sure you’re using tools that are rated for electrical work.
- Follow Local Codes: Always adhere to local building and electrical codes, especially for outdoor installations.
- Call a Professional: If you’re unsure about any part of the installation, don’t hesitate to call a licensed electrician.
Conclusion
Installing a 50 amp RV plug at home is a project that requires careful planning and attention to detail. By following the proper steps and safety guidelines, you can ensure that the installation is both effective and safe. Whether you’re setting up a power source for long-term RV stays or just need a reliable outlet for your RV, a 50 amp RV plug will provide the power you need. Always remember to consult an electrician if you’re unsure about any aspect of the installation process.
